100 watt laser cutting machine for Advertising Acrylic Leather Non-metal Cutting

This product is currently out of stock and unavailable.

Adopt the new high-efficiency CO2 laser tube of RECI, the 100W CO2 laser tube can reach a peak of 122W. The laser beam is more stable and the life of the laser tube can exceed 10,000 hours.The aluminum alloy adjustable laser head is lighter than other metal laser heads, which can minimize the inertia error when the laser head moves.” The structure is simple, the operation is convenient, the laser device is stable,and the maintenance cost is low

SKU: 3256803364164086. Category:

100 watt laser cutting machine for Advertising Acrylic Leather Non-metal Cutting

100 watt laser cutting machine for Advertising Acrylic Leather Non-metal Cutting Working area is :900*600mm/1300*900mm

#60W/80W/100W/130W/150W laser tube
#Honeycomb table
#Original ruida 6445G or 6442S Control System
#Singapore Original 3 Reflection mirror and 1 focus lens
#Stepper motor and driver
#Water protection switch
#Air pump
#Water pump

Laser Cutting Machine Photos

Laser cutting machine Parameters:

Parameter
Name CO2 laser cutting engraving machine
Model ZE-C1390
Working area 1300*800mm
Laser power 60w,80w,100w,130w,150w,180w
Laser type CO2 laser tube,RECI brand,>10000 hrs service life
Cooling ways Water cooling
Engraving speed 0-500mm/s
Cutting speed 0-400mm/s
Laser output control 0-100% controlled by software
Min engraving size English letters,1*1mm
Scanning resolution 4000DPI
Locating accuracy ≤0.01mm
Controlling software DSP controlling system,RDWORKS V8
Format supported DST,PLT,DXF,AI,LAS,BMP,JPG,PNG,etc
Software environment Windows xp/7/8/10
Compatible software Coreldraw,Autocad
Color separation output Yes
Slope engraving Yes
Driving system High precision stepper motor with belt
Auxiliary accessories Exhaust fan,fume tubes,air pump
Working table Blades table or Honey comb

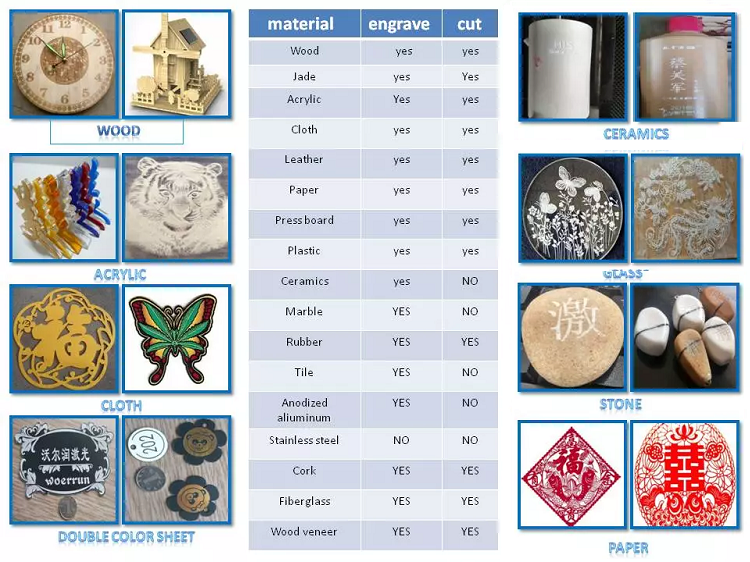

Applicable materials Acrylic,wood,plywood,MDF,glass,stone,plastic,rubber ,leather
Working environment Temperature 0-45℃,Humidity5-95%(no condensate water.)
Power supply 110v/220v,50hz/60hz
Weight 450kg
Dimension 1680*1260*800mm

Sample Show

Packing & Delivery
