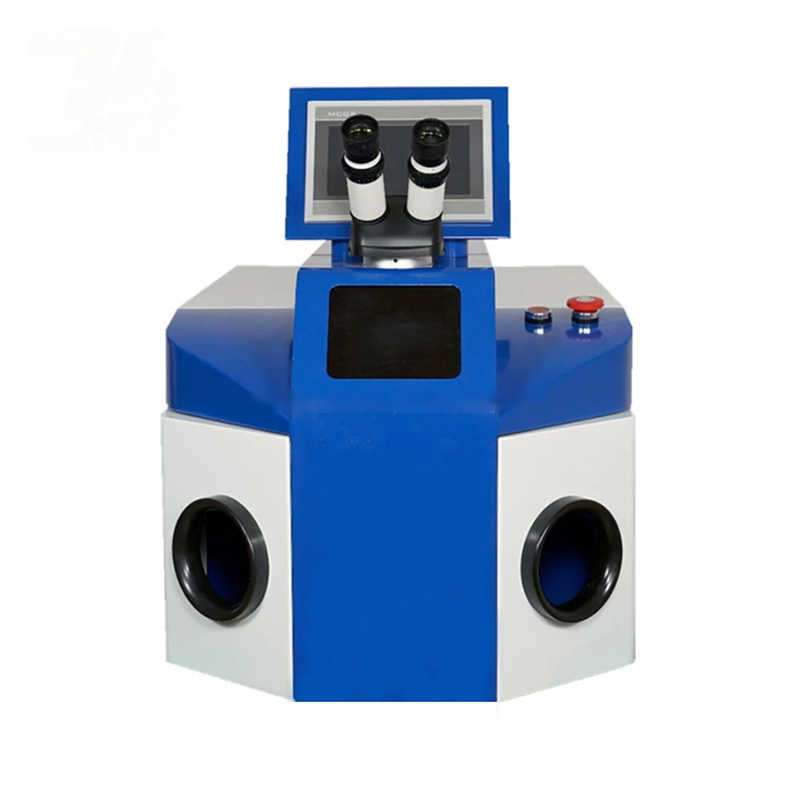

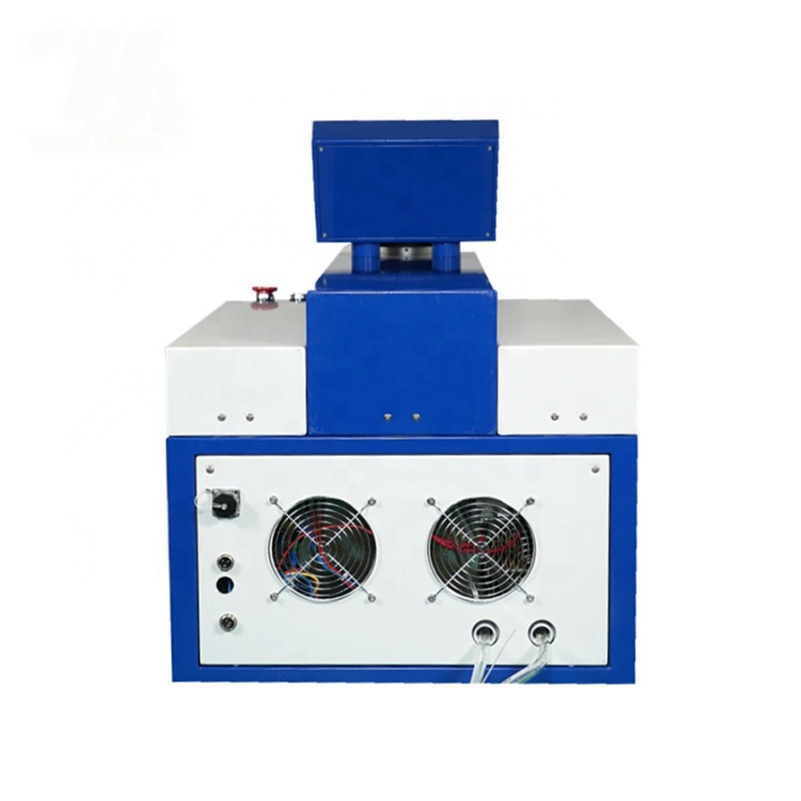

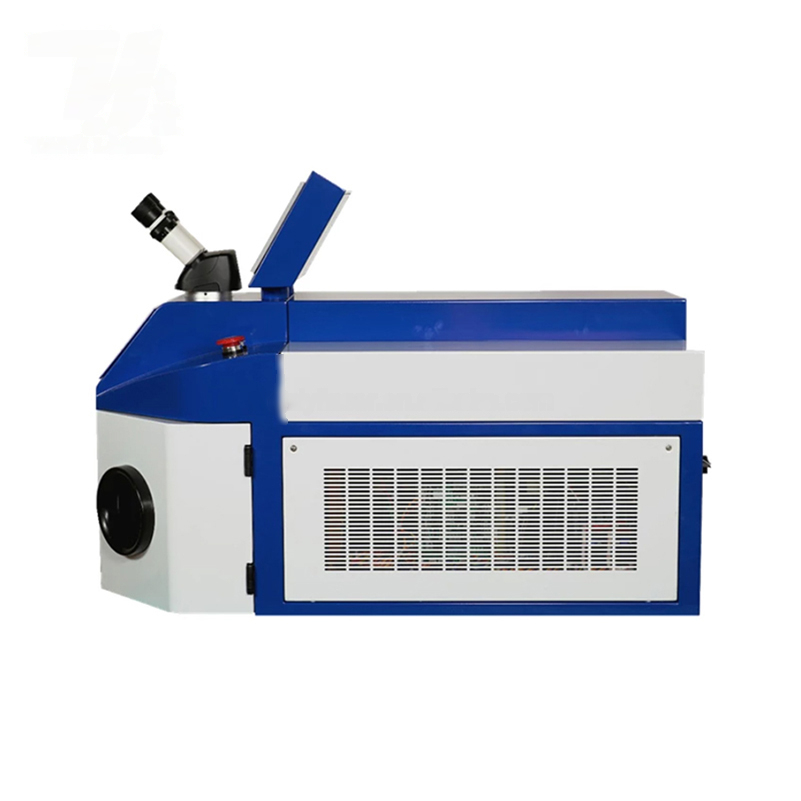

Best price jewelry laser welding machine 150w 200w
PRODUCT Features
● jewelry laser welding machine Regulating pulse power supply , compact size, single pulse energy is 15% higher than ordinary power supply.More suitable for gold, silver and other high anti-material welding requirements.
● The core component “laser condenser cavity” using gold-plated reflection condenser cavity, more stable performance, longer service life, for users to bring efficient and economic processing solutions.
● The whole machine structure optimization preparation, smaller, more portable operation, a real high performance mini welding machine.
● The welding quality is high, the welding seam is beautiful, the welding seam can be the same strength as the base metal, without the secondary processing, effectively improve the qualified rate of finished products;
● Weldable refractory material, especially suitable for micro and small parts, jewelry precision welding;
● Special plane customization ability is strong, according to customer requirements tailored to create exclusive
PRODUCT DESCRIPTION
Microscope
Easy for viewing the welding position and adjusting the parameter accordingly.

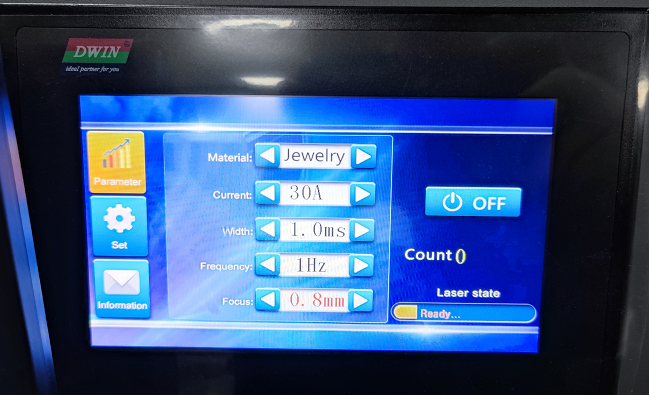

HD touch screen
High-resolution touch screen, smooth operation, stable, easy for operation Adjust 3 parameters ONLY: Current/Pulse/- Frequency.

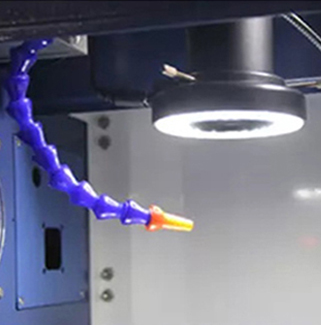

Laser head&Air tube
With the light and red light pointer in the operation space Accurate welding With air tube Better welding effect.
Foot switch
Control the laser source.
|
PRODUCT Parameters
|
|
|
Laser Power
|
200W（Optional）
|
|
Max Single Pulse Engery
|
120J
|
|
Laser Wavelength
|
1064nm
|
|
Pulse Frequency
|
≤100Hz
|
|
Pulse Width
|
≤20ms
|
|
Spot Adjustment Range
|
0.1-3mm
|
|
Repeating Precision
|
±0.1mm
|
|
Observation System
|
Microscope
|
|
Voltage
|
Single-Phase 220V/50HZ/20AVoltage
|
|
Overall Power
|
6KW
|
|
Cooling Method
|
Water Cooling
|
|
Weight
|
60KG
|
|
Cabinet Size
|
850*500*600mm
|
WIDER APPLICATION
This series of products for jewelry, hardware, electronic industry design. Mainly used in jewelry, hardware, electronic components,3C communication, crafts and other industries. They can repair and weld all kinds of metals and alloys, spot weld lines, splicing, embedded troops and other welding; Such as stainless steel, copper, gold, silver,K gold, jewelry processing shop, shop, factory or school scientific research laboratory necessary welding tools.
