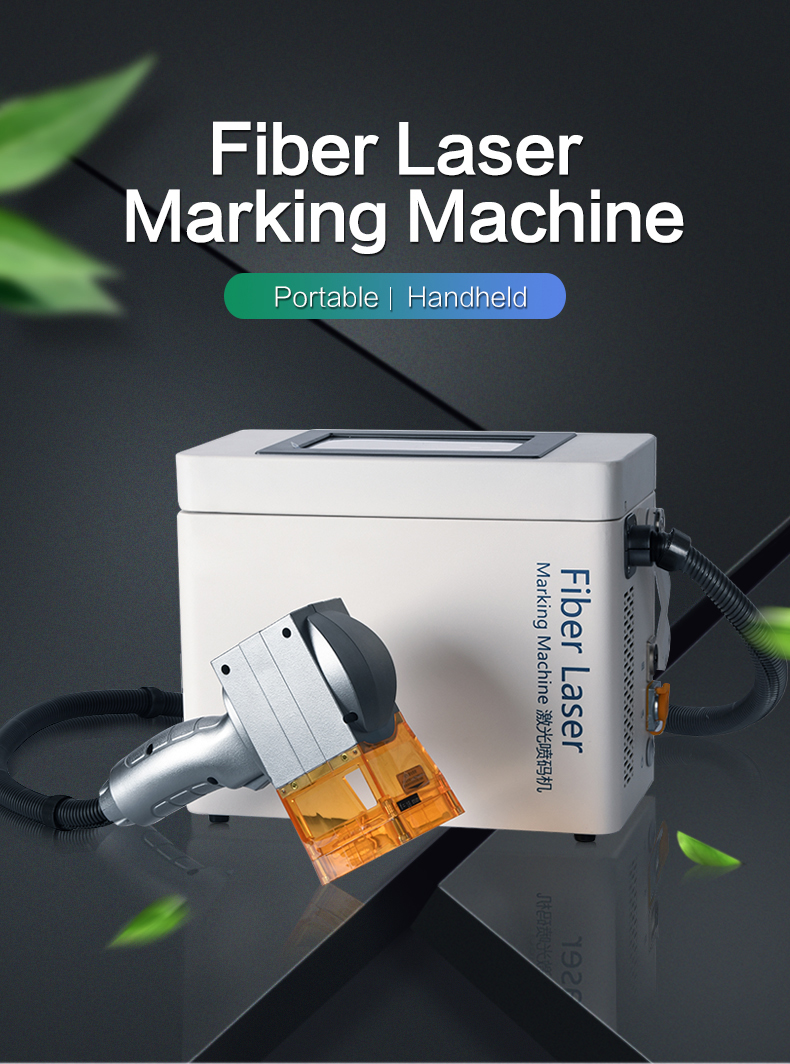

Stainless Steel Portable Handheld Laser Marker
Features:
Portable handheld laser marker is arguably the best technology for laser marking due to it’s flexibility when it comes to materials, encompassing most plastics, metal and many organics.
– Fiber beam delivery with integrated optical isolator
– Extremely lightweight and equipped with a handle for increased portability
– 50mm x 50mm or 100mmx100mm Marking Area
– Compact design, easy to move
– Built in touch screen dispay for easier operation
– Air cooled, no need for a water chiller unit
– Power consumption is significantly less
– NO maintenance
– NO consumables
Portable handheld laser marker is arguably the best technology for laser marking due to it’s flexibility when it comes to materials, encompassing most plastics, metal and many organics.
– Fiber beam delivery with integrated optical isolator
– Extremely lightweight and equipped with a handle for increased portability
– 50mm x 50mm or 100mmx100mm Marking Area
– Compact design, easy to move
– Built in touch screen dispay for easier operation
– Air cooled, no need for a water chiller unit
– Power consumption is significantly less
– NO maintenance
– NO consumables

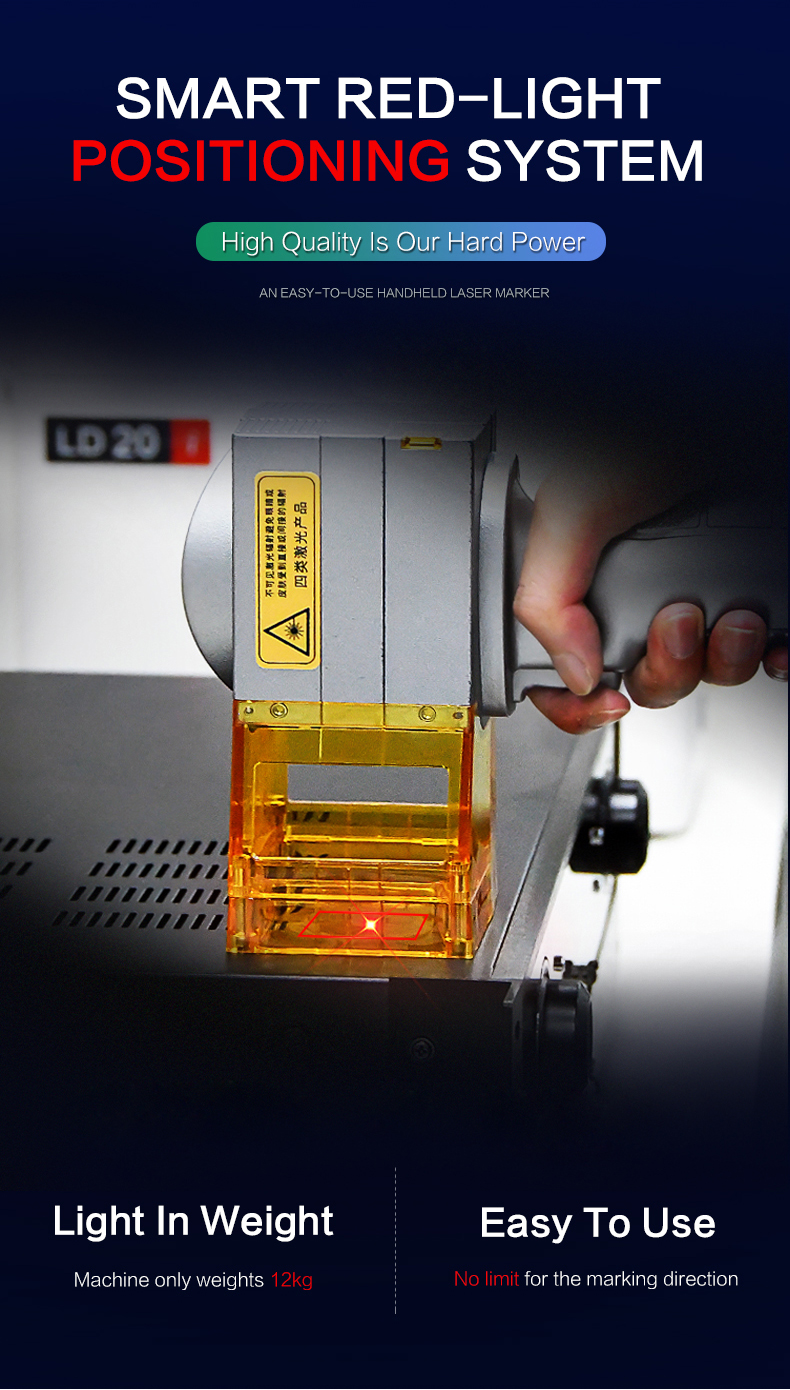

Special design: Smart RED-LIGHT positioning system make it easier to use.
Specification
|
Model
|
ZE-FL20W
|
ZE-FL 30W
|
|
Output power
|
≥20-watt
|
≥30-watt
|
|
Material
|
Anodized aluminum
|
|
|
Laser type
|
Fiber laser source
|
|
|
Laser wavelength
|
1064nm
|
|
|
Marking method
|
High-precision 2D scanning
|
|
|
Marking speed
|
≤7000mm/s
|
|
|
Control system
|

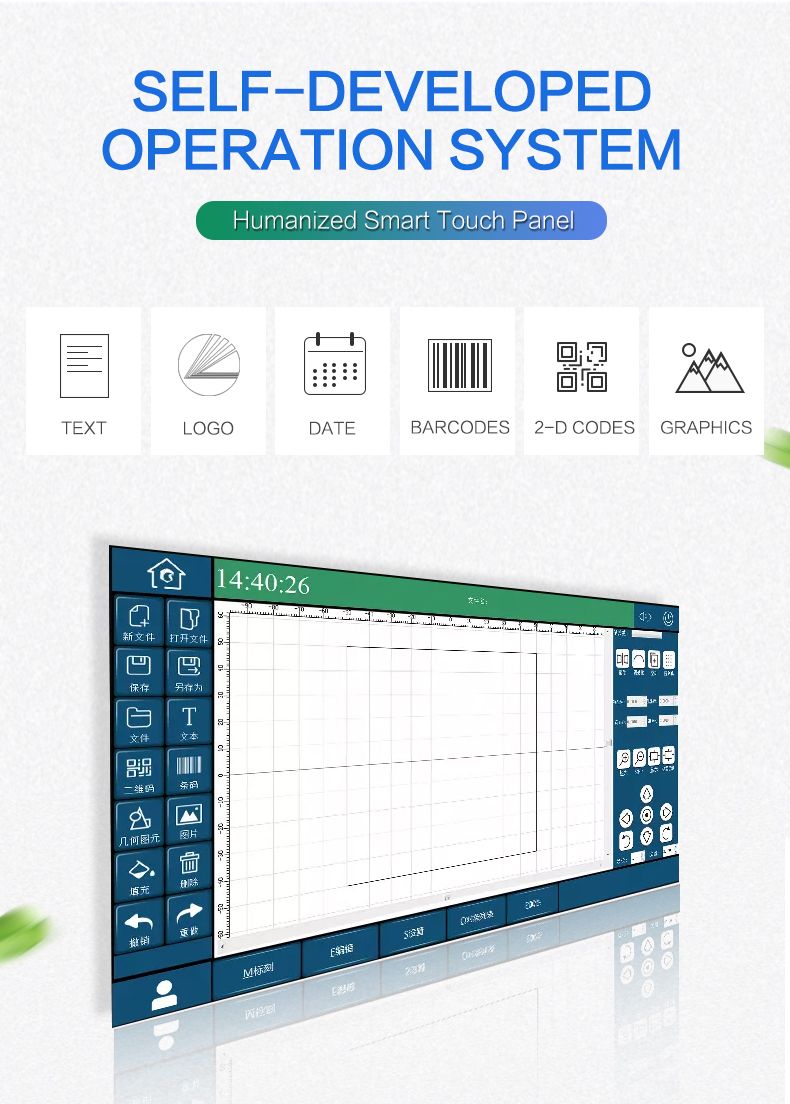

Highly- integrated motherboard, a 7-inch touch display built-in. Can be connected to extra 10-inch touch screen.
|
|
|
Operating system
|
Linux
|
|
|
Cooling system
|
Air cooling
|
|
|
Type of marking line
|
Dot matrix / vector (both are available)
|
|
|
Reflector size
|
Standard size:8.5mm
|
|
|

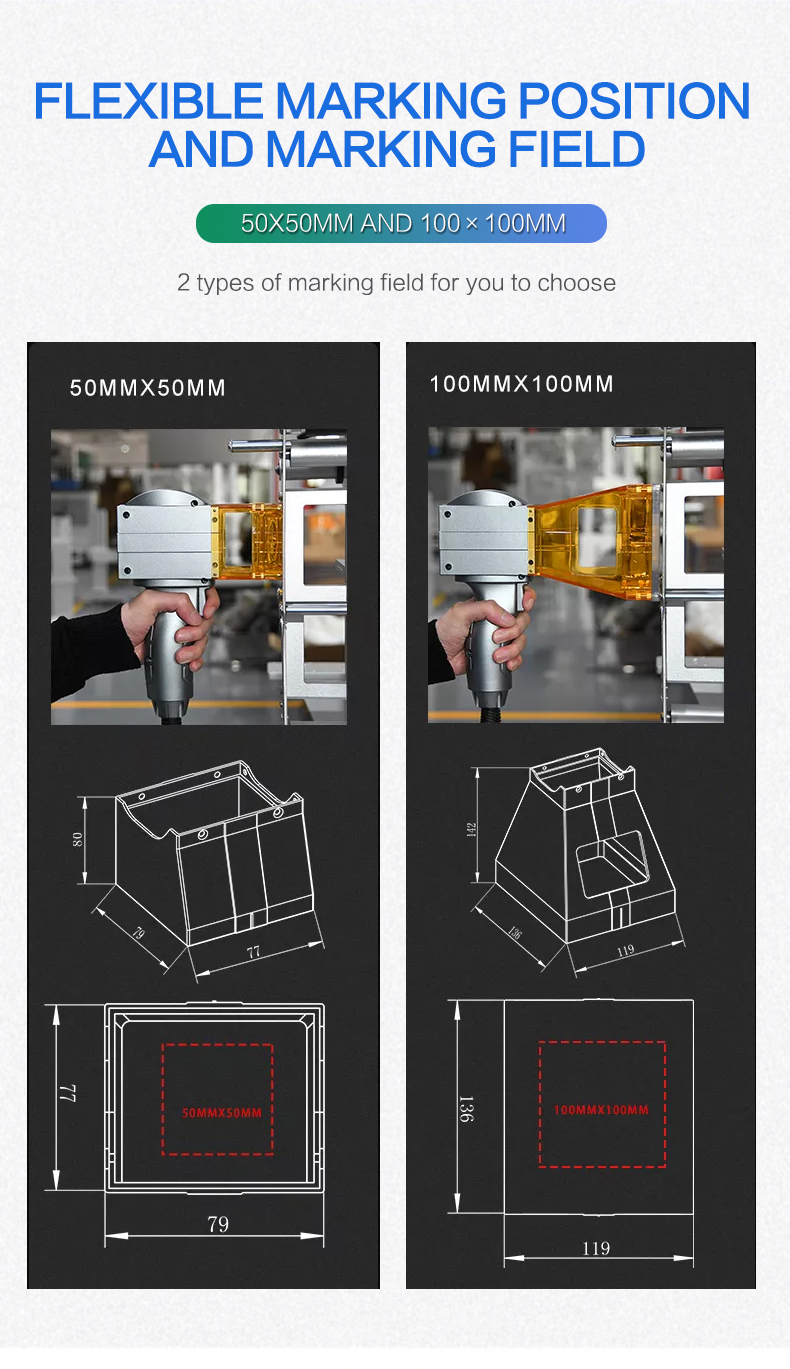

Marking range
|
Standard:50mm×50mm/100mmx100mm
|
|
|
Positioning method
|
Red light positioning
|
|
|
Lines of marking
|
Any number of lines within the marking field
|
|
|
Marking speed
|
650 characters/sec (the specific speed is related to product material and printing content)
|
|
|
Font
|
Simplified Chinese, Traditional Chinese, English, Korean, Russian, Arabic numerals and other standard font libraries
|
|
|
File format
|
BMP/DXF/HPGL/JPEG/PLT
|
|
|
Bar code / QR code
|
CODE39,CODE128,CODE126,QR,Z-code,DM, visual code, etc.
|
|
|
Power
|
220V
|
|
|
Max. power
|
≤300W
|
|
|
N.W.
|
12kg
|
|
|
Handle dimension
|
241.5mmx79mmx151mm
|
|
|
Control box dimension
|
320mmX170mmX270mm
|
|
|
Pollution level
|
2
|
|
|
Overvoltage category
|
Ⅱ
|
|
|
Working temperature
|
0-40℃
|
|
|
Working humidity
|
30%-85 % RH (non-condensing)
|
|
Products Applications
Product Advantages
